Compact manifold with uniform pipe distances

Combined flow and return manifold, consisting of rectangular tube with chambers arranged adjacent to each other, separated by sinusoidal partition wall and made of black sheet steel S235. The compact manifold is pressure-tested and primed at the factory. Operating pressure max. 6 bar (87 psi), operating temperature max. 110°C (230°F)

  • Connections as threaded and/or ANSI 150lbs.

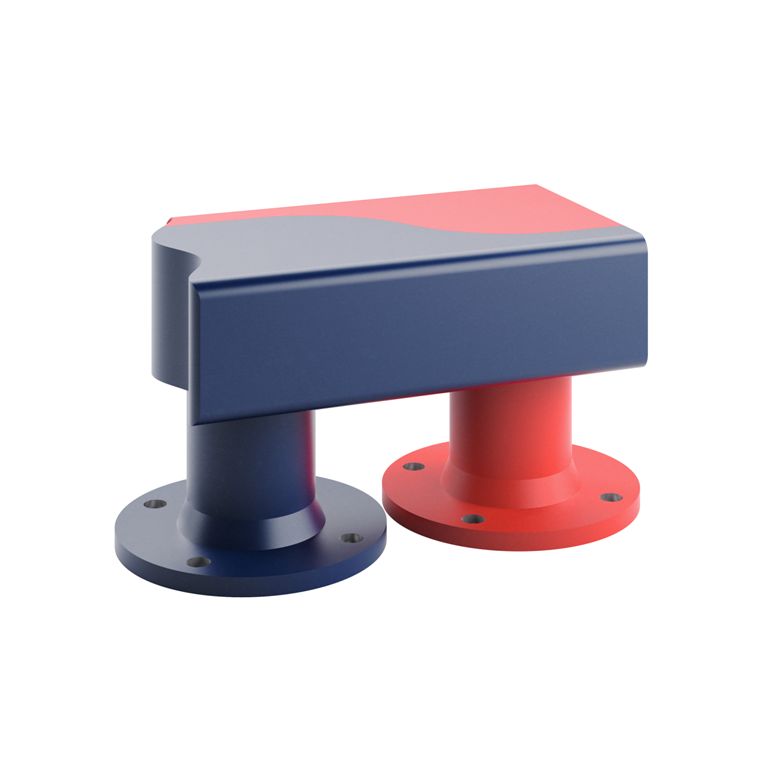

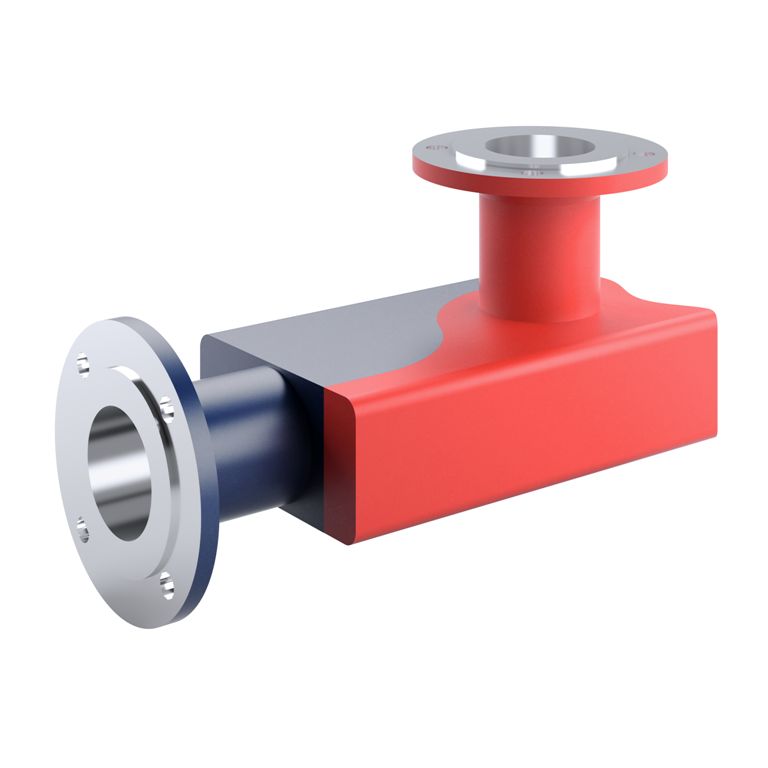

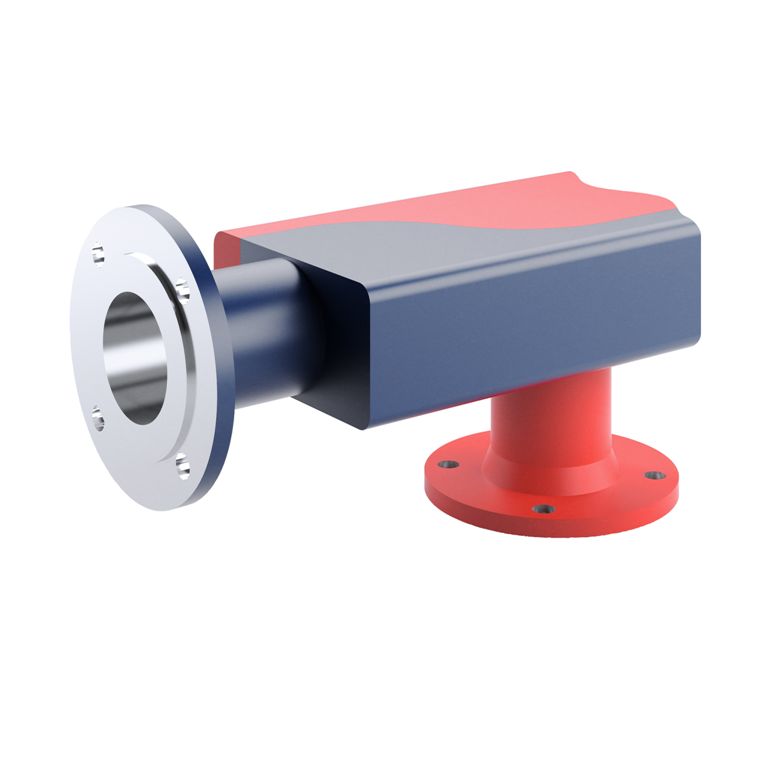

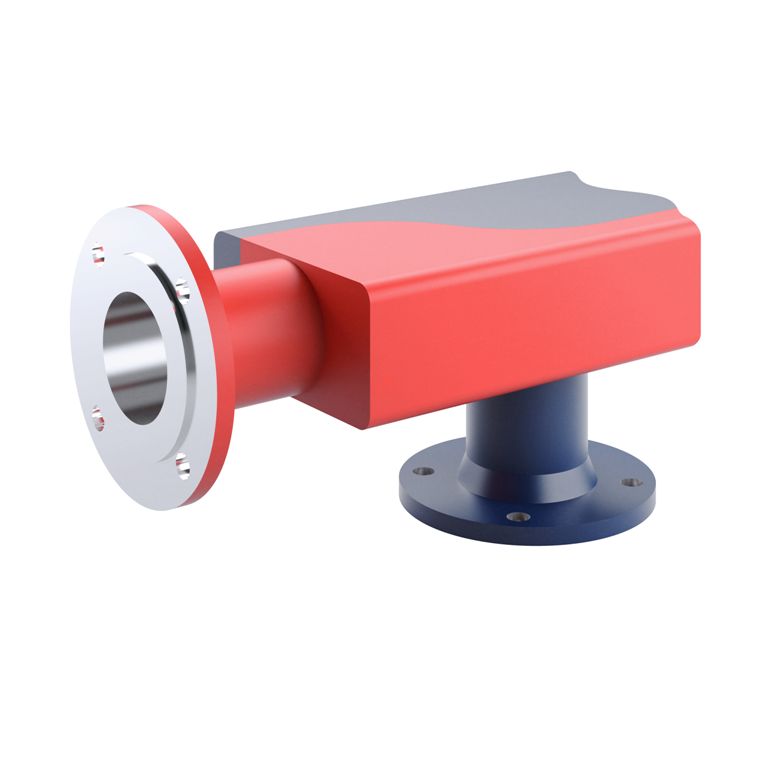

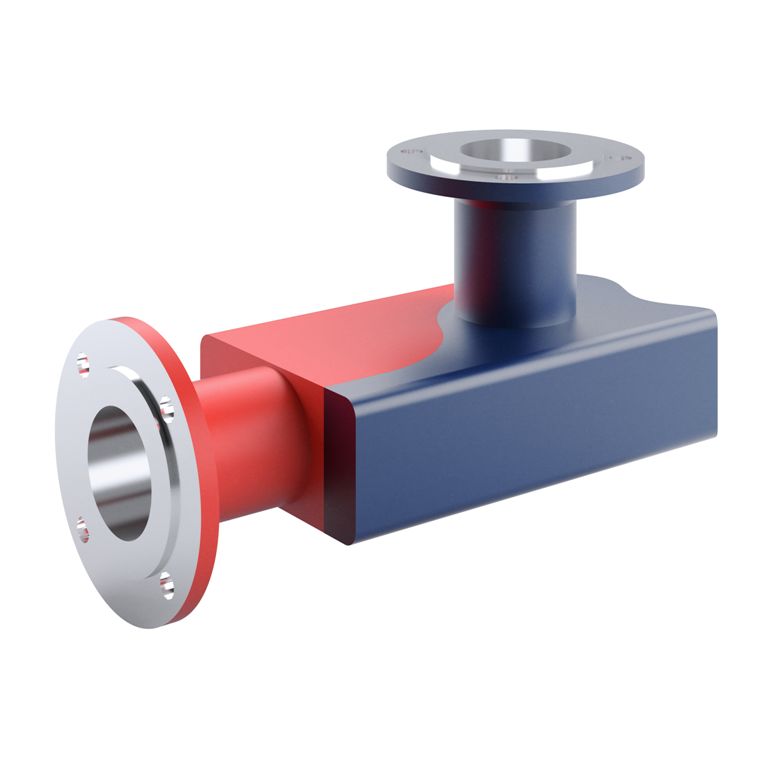

  • All nozzles are aligned to the height of the shut-off valves and optionally available from the top, the side or the bottom.
  • Drain connection couplings 1/2" for flow and return line chamber are a standard feature.

up to 10.8 m³/h (47.5 gpm)
up to 17.2 m³/h (75.8 gpm)
up to 25.8 m³/h (113.6 gpm)
up to 53.8 m³/h (237.0 gpm)
up to 68.8 m³/h (303.0 gpm)

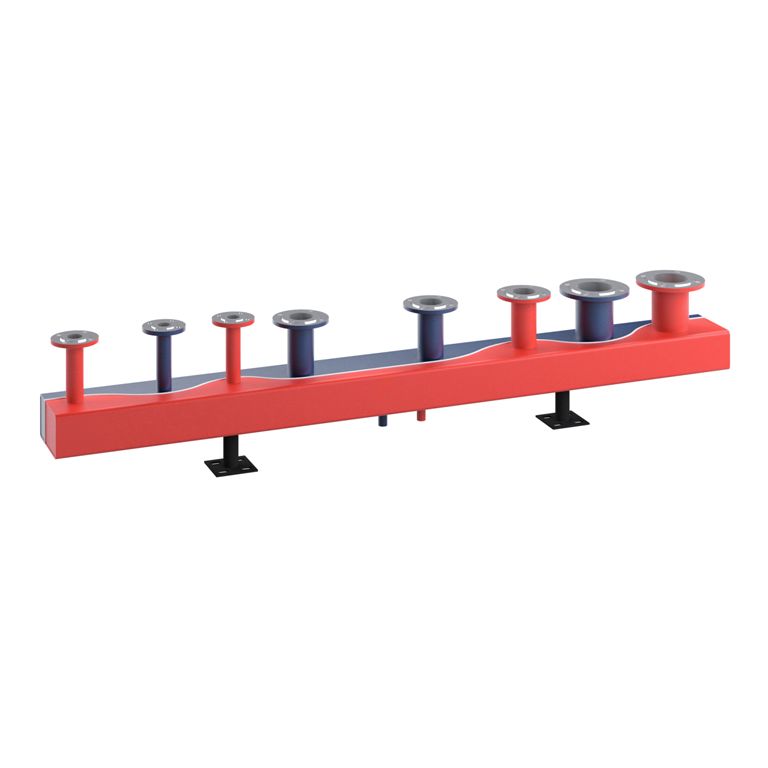

Individual compact manifolds

Combined flow and return manifold, consisting of rectangular tube with chambers arranged adjacent to each other, separated by sinusoidal partition wall and made of black sheet steel S235. Operating pressure optionally for max. 6 bar (87 psi), operating temperature max. 110°C (230°F).The compact manifold is pressure-tested and primed at the factory.

  • Connections as threaded and/or ANSI 150 lbs.
  • All nozzles are aligned to the height of the shut-off valves and optionally available from the top, the side or the bottom.
  • Drain connection couplings 1/2" or 3/4" for flow and return chamber are a standard feature

go to product

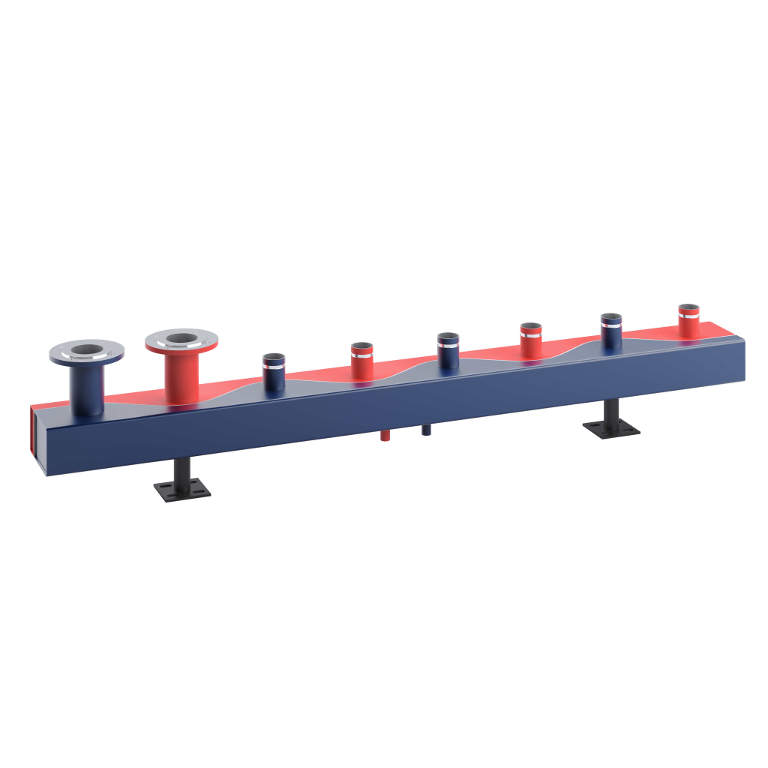

SinusFixx Compact manifold

SinuFixx manifold as combined flow and return manifold with adjacent chambers divided by a sinusoidal parting wall.

  • Victaulic connection for connecting the heating circuits

up to 10.8 m³/h (47.5 gpm)
up to 25.8 m³/h (113.6 gpm)
