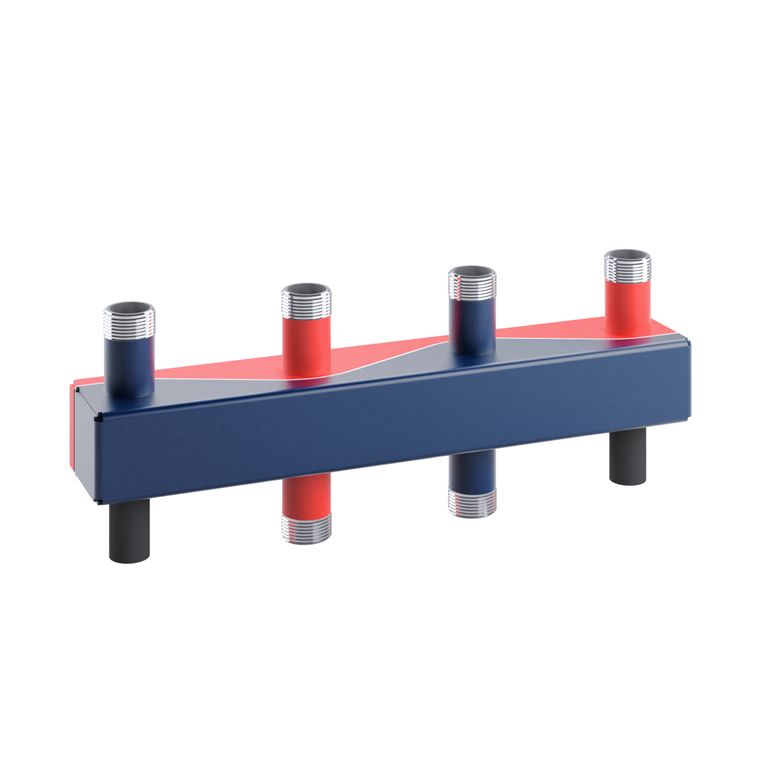

Small manifold with threaded connection

Combined flow and return manifold, consisting of rectangular tube with flow and return line chambers arranged adjacent to each other, separated by sinusoidal partition wall and made of black sheet steel S235. The Sinusverteiler manifold is pressure-tested and primed at the factory.

up to 3.0 m³/h (10.7 gpm)
up to 6.5 m³/h (28.6 gpm) 200 mm (7 7/8") Pipe distance OC

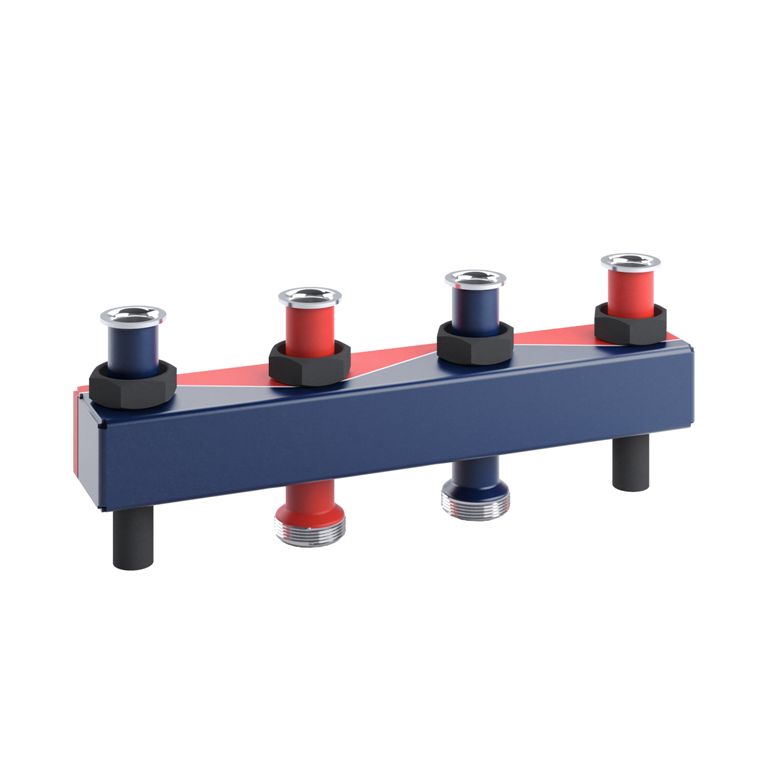

Small manifold with union connection

Combined flow and return manifold consisting of rectangular tubing with chambers made of black sheet steel S235
arranged adjacent to one another and separated by sinusoidal parting wall. The compact manifold is factory pressure tested and primed.

up to 3.0 m³/h (10.7 gpm) 125mm (4 11/16") Pipe distance OC

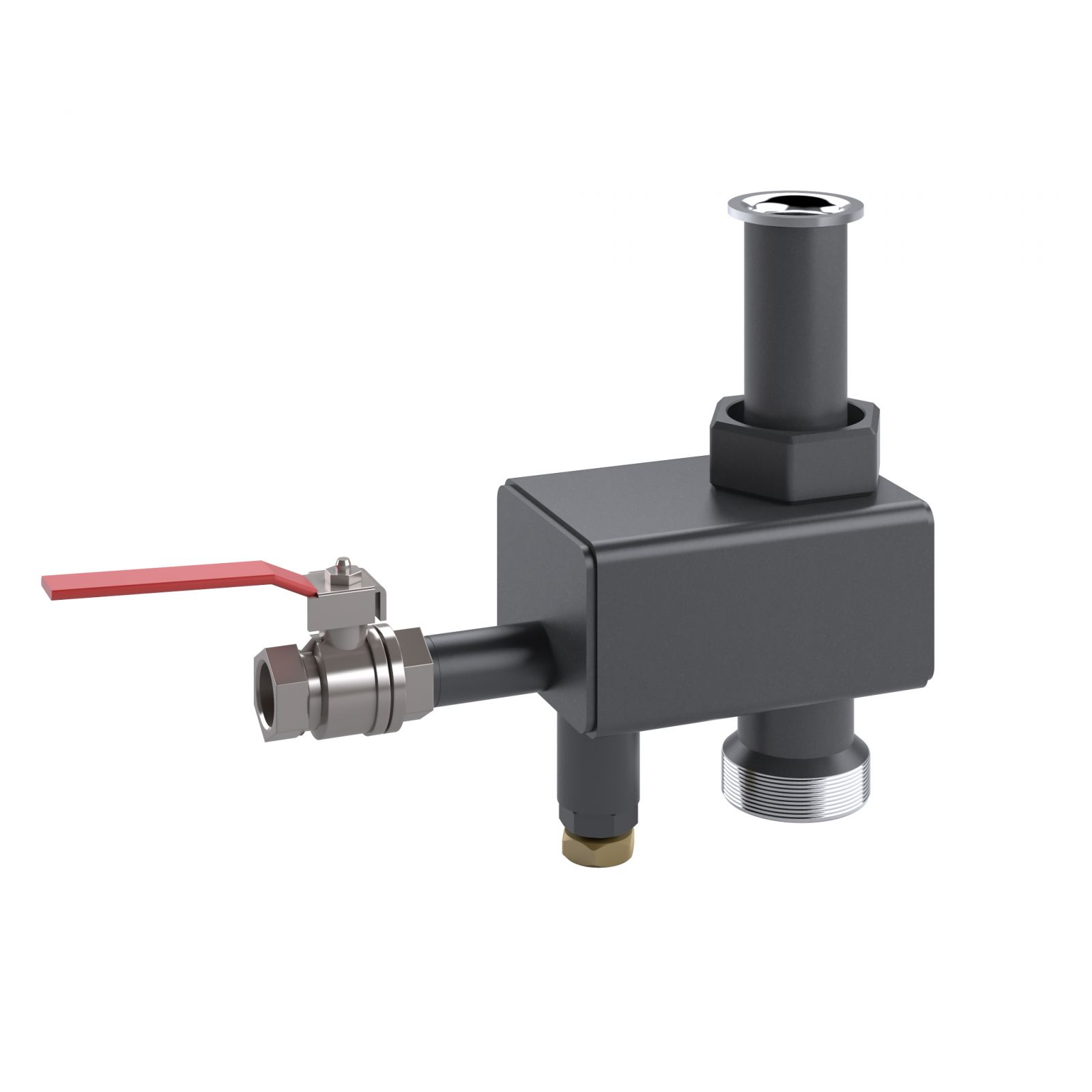

Maintenance box - Magnetite separation module

The maintenance box, suitable for all small manifolds 80/60 and 120/80, as an optional extra for magnetite separation. Consisting of a section tube, material S235. Equipped with desludging nozzle and ball valve 1/2", and magnetic rod screwed into the thermwell. For attachment to the boiler return line beneath the manifold. Enables desludging with pressurized system.

up to 3.0 m³/h (10.7 gpm)
up to 7.0 m³/h (30.8 gpm)
