Sinus HydroFixx - The heating manifold with integrated hydronic junction

Obvious advantages:

  • Available as cooling water or heating manifold
  • Considerable reduction of installation costs: only a single piping connection between HydroFixx and boiler required
  • Connection according to Tichelmann system also possible
  • Considerable space saving in terms of width and height when using a heating manifold with integrated hydronic junction
  • Lower acquisition price for steel component and insulation
  • Also for multivalent system types
  • Easier handling at the construction site
  • Also available as ProfiFixx version
  • Supply to/from the heating boiler possible both from the top onto the compact manifold and from the bottom to the hydronic junction
  • Heating circuit connections designed as threaded and/ or flanged connectors PN 6 / PN 16 and aligned to the height of the shut-off valves
  • Downward-running sludge trap with 1" desludging sleeve
  • As set incl. insulation and wall bracket available from stock
  • The heating manifold with integrated hydronic junction is pressure-tested and primed at the factory
  • The performance data specified in [ kW ] refer to a temperature spread of 20K

In-stock product

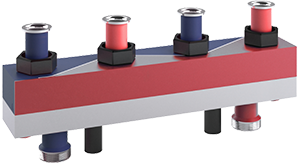

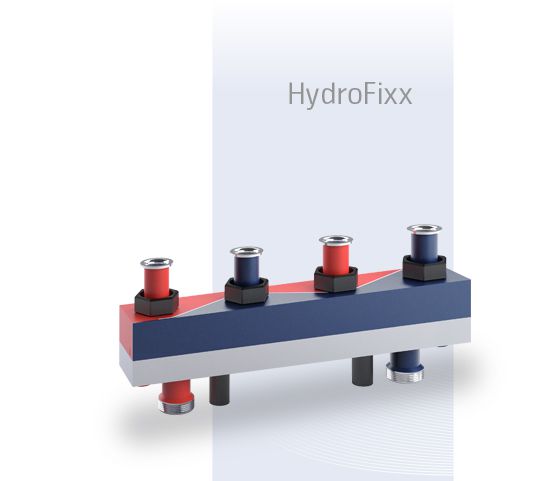

Combined flow and return manifold with chambers arranged adjacent to each other, separated by sinusoidal partition wall, with horizontally welded-on hydraulic separator located directly below.
Consisting of square profiles S235. The HydroFixx is pressure-tested and zinc-plated at the factory. Operating pressure max. 4 bar / 58 psi, operating temperature max. 110 °C / 230°F.

HydroFixx in-stock product

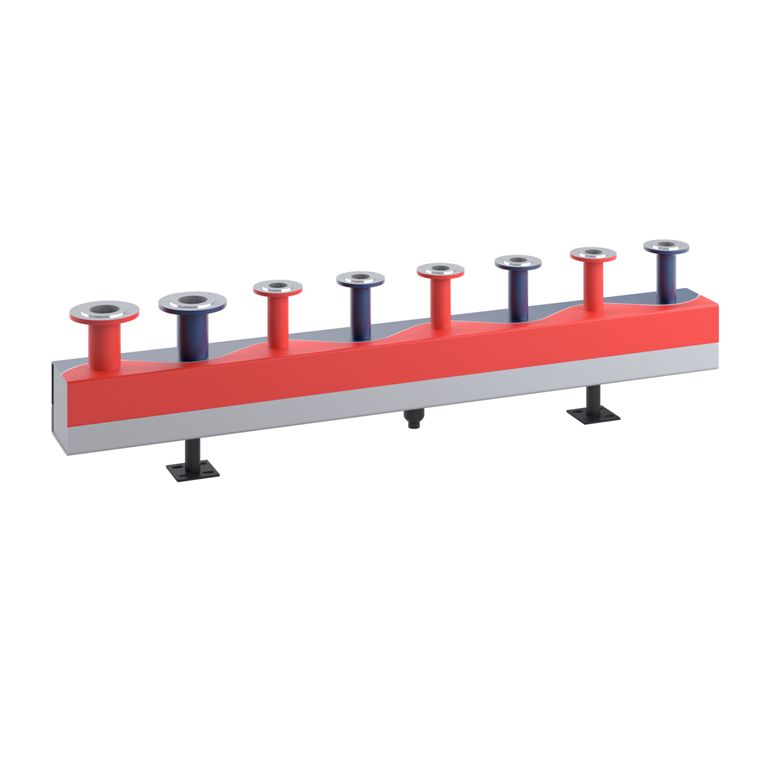

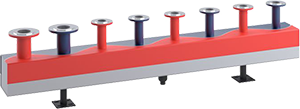

Large-sized design

Combined flow and return manifold with chambers arranged adjacent to each other, separated by sinusoidal partition wall, with horizontally welded-on hydraulic separator located directly below.
Consisting of square profiles S235, wall thickness 4 mm. The HydroFixx is pressure-tested and primed at the factory. Operating pressure max. 6 bar / 90 psi, operating temperature max. 110°C / 230°F.

HydroFixx large-sized design

Heating manifold with hydronic junction

The HydroFixx, consisting of a heating manifold with integrated hydronic junction, incorporates many positive characteristics in one component. On the one hand, the integrated hydraulic separator ensures optimum hydraulic separation of the boiler circuit from the consumer circuits, on the other hand the heating manifold horizontally positioned above enables space-saving arrangement of the heating circuits.

In the domestic services field, especially designed for use in one-boiler systems, the small HydroFixx offers the optimum solution for combined and space-saving heating circuit manifolds. In a system with two or more heating circuits, neither an increased amount of installation work nor additional space is required. If the condensing unit is equipped with a hydraulic separator control with primary volume flow rate adjustment, the return flow boost is avoided. The flow temperature of the system is registered in the Sinus Hydrofixx and compared  with the flow temperature of the boiler. Thus, the volume flow rate ratios in the hydraulic separator can be concluded therefrom, enabling a reaction by changing the speed of the internal pump.

The advantages particularly apply to the HydroFixx in large-sized design. Savings in installation time, hydraulic separation and minimized space required have a particularly positive effect on the construction costs and on the efficiency of the system. There are several reasons in favour of the combination of heating manifold and low loss header.
