Small manifold up to 150 kW / 511.8 MBH
incl. EPP insulation
| Chamber size: | 120/80 |
| Connection: | NPT |
| Heating water throughput rate: | 6.5 m³/h / 28.6 gpm |
| Output at ∆t 20K: | 150 kW / 511.8 MBH |
| Pipe distance (OC): | 200 mm / 7 7/8" |
| Operating pressure | max. 4 bar / max. 58 psi |
| Operating temperature | max. 110°C / max. 230°F |
Product description

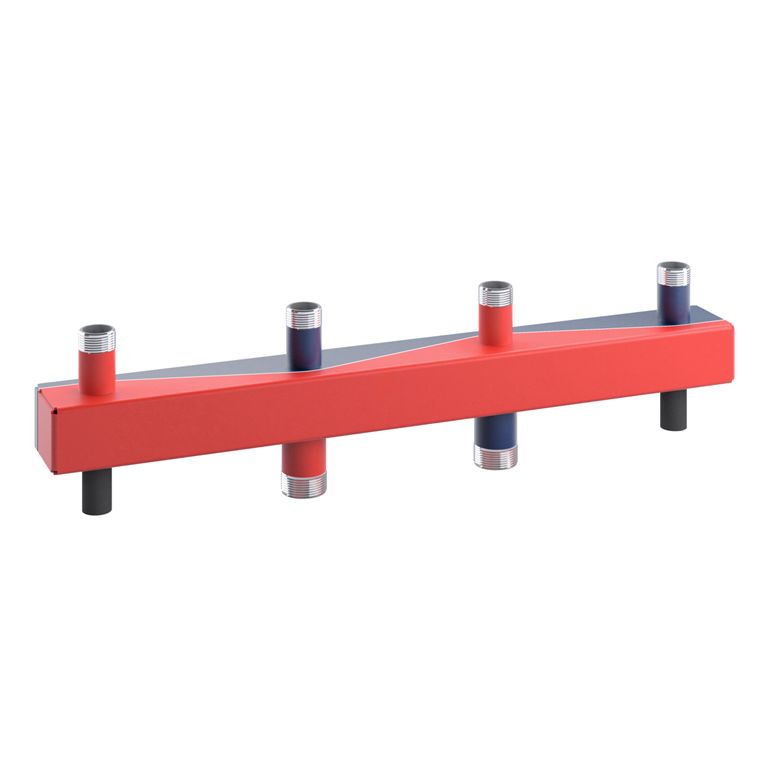

Combined flow and return manifold consisting of rectangular tubing with chambers made of black sheet steel S235
arranged adjacent to one another and separated by sinusoidal parting wall. The compact manifold is factory pressure
tested and primed.
- Connection, heating circuits: 1 1/2"
- Connection, boiler circuits: 2" NPT
Accessories
Thermal insulation, included in the set
|
For chamber size
| EPP foam (black) |
|---|---|
| [mm] | [Insulation thickness in mm] |
| 60/60 |
32 |
| 80/60 | 36 |
| 120/80 | 52 |
In compliance with EnEV 2014 consisting of half shells with end pieces and cutouts for all nozzles.
Wall bracket
Soundproof and zinc-plated, consisting of wall panel for screw fastening, bracket and head plate (120 x 120 mm), outreach up to manifold centre 200 mm
(2 wall brackets are required for each manifold).
Stand bracket
Soundproof and zinc-plated, consisting of bottom plate (150 x 150 mm) with stand pipe
and head plate (120 x 120 mm) with guide pipe incl. connecting screws, adjustable in height from 405 - 600 mm.
(2 brackets are required for each manifold)
Maintenance box - Magnetite separation module
Enables desludging with pressurized system. Consisting of section tube 120x80, material S235, connection: 1x top Rp 2“, 1x bottom R 2“. Equipped with desludging nozzle and ball valve ½“, and magnetic rod screwed into the thermwell. For attachment to the boiler return line beneath the manifold.
Set components: EPP insulation, ball valve, magnetite filter cartridge, 2" screw fitting
Flange coupling piece
For implementation of the connections as flanged connectors, consisting of flange PN 6 (DN 2631) and
threaded screw-in socket 1 1/2", flanged connector height for spindle height of compact valves F4 in compliance with DIN 3202.
Reducing nipple
For implementation of the connections as threaded connectors, consisting of malleable cast iron and external thread on both sides.
Threaded flange
For implementation of the boiler flow and return line connection as flanged connector.
Identification plate
Made of galvanized sheet steel with transparent cover for three-line label for screw fixing to the thermal insulation. Size: 100 x 50 mm, colours: red for flow line / blue for return line
Technical data
|
Output at
| Number of heating circuits | Heating water throughput rate | Length | Water quantity |
Heat transfer at 70°/50°C |
Return flow boost |
Wall thickness
| |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [kW] | [Btu] | [HK] | [m³/h] | [gpm] | [mm] | [in inch] | [l] | [gal] | [kW] | [Btu] | [%] | [K] | [mm] | [in inch] |
| 150 | 512 | 2 | 6.5 | 28.6 | 700 | 27.6 | 2.9 | 1.53 | 1.5 | 6.8 | 2.0 | 0.2 | 3.0 | 0.1 |
| 150 | 512 | 3 | 6.5 | 28.6 | 1,100 | 43.3 | 4.5 | 2.43 | 2.2 | 10.2 | 3.1 | 0.4 | 3.0 | 0.1 |
| 150 | 512 | 4 | 6.5 | 28.6 | 1,500 | 59.1 | 6.2 | 3.41 | 2.9 | 13.7 | 4.2 | 0.5 | 3.0 | 0.1 |
| 150 | 512 | 5 | 6.5 | 28.6 | 1,900 | 74.8 | 7.8 | 4.20 | 3.7 | 17.1 | 5.3 | 0.7 | 3.0 | 0.1 |
| 150 | 512 | 6 | 6.5 | 28.6 | 2,300 | 90.6 | 9.5 | 5.10 | 4.5 | 20.5 | 6.3 | 0.8 | 3.0 | 0.1 |
