Small hydronic junctions
Hydraulic separator, consisting of a vertical rectangular chamber
made of hollow square profile S235 with welded-in top and bottom,
with four lateral nozzles for the connection of heat consumers and heat generators.
The hydraulic separator is pressure-tested and zinc-plated at the factory.
Operating pressure max. 4 bar, operating temperature max. 110°C.
- Incl. thermal insulation in compliance with EnEV dated 01/05/2014 consisting of two half shells with end pieces and cutout for all nozzles.
- up to 4.5 m³/h
- up to 8.0 m³/h

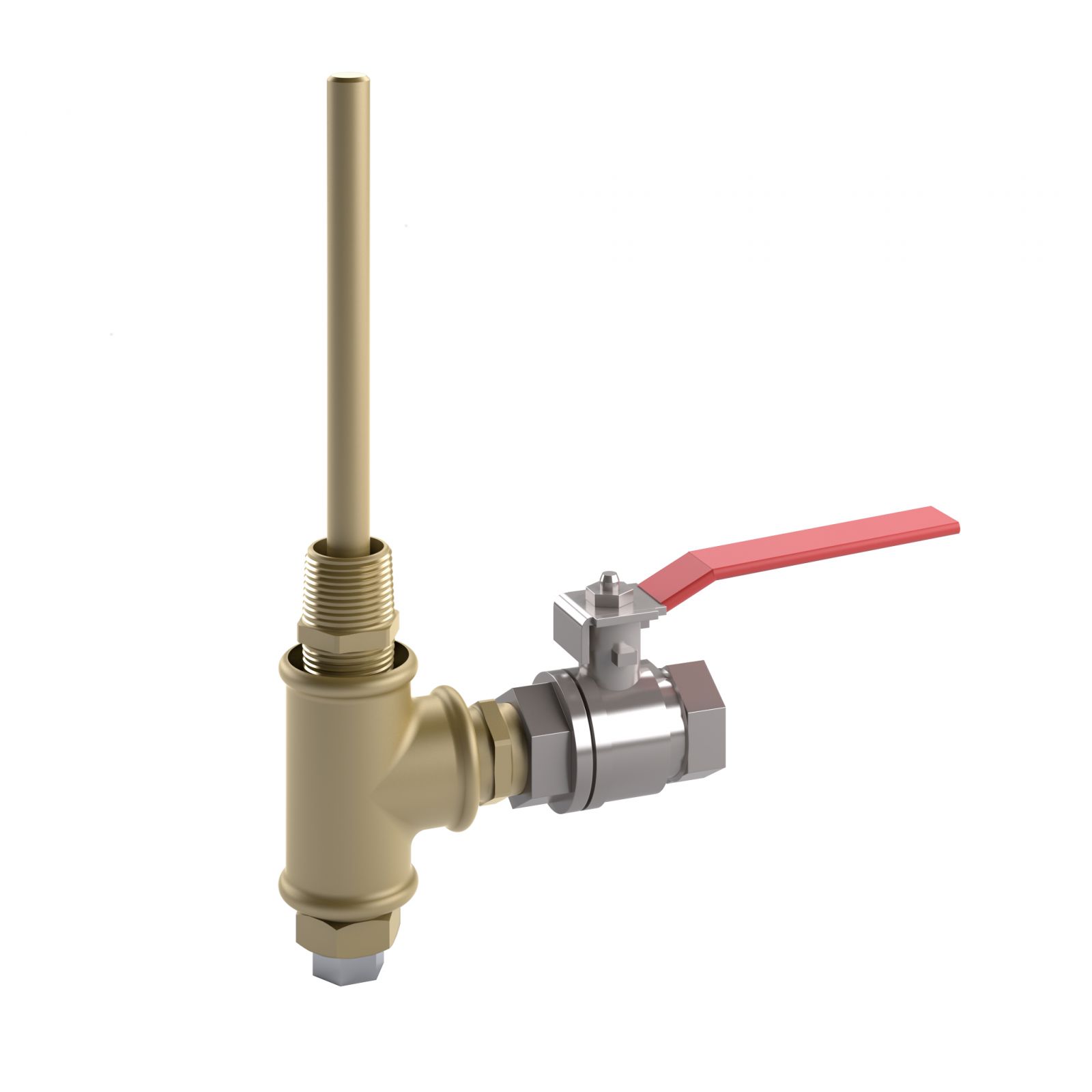

Magnetite separation module for small hydraulic separators
Magnetic insert for separation of ferromagnetic substances in small hydraulic separators.
Consisting of: Magnetic rod screwed into the thermwell, desludging nozzle with ball valve 1/2". Enables desludging with pressurized system.
