HydroMaxx
4 m³/h up to 300 m³/h / 17.5 gpm up to 1,320 gpm
| Chamber size: | 160/80 up to 700/500 |
| Heating water flow rate: | 4 m³/h up to 300 m³/h / 17.5 gpm up to 1,320 gpm |
| Operating pressure: | max. 10 bar / max. 145 psi |
| Operating temperature: | max. 110°C / max. 230°F |
Product description

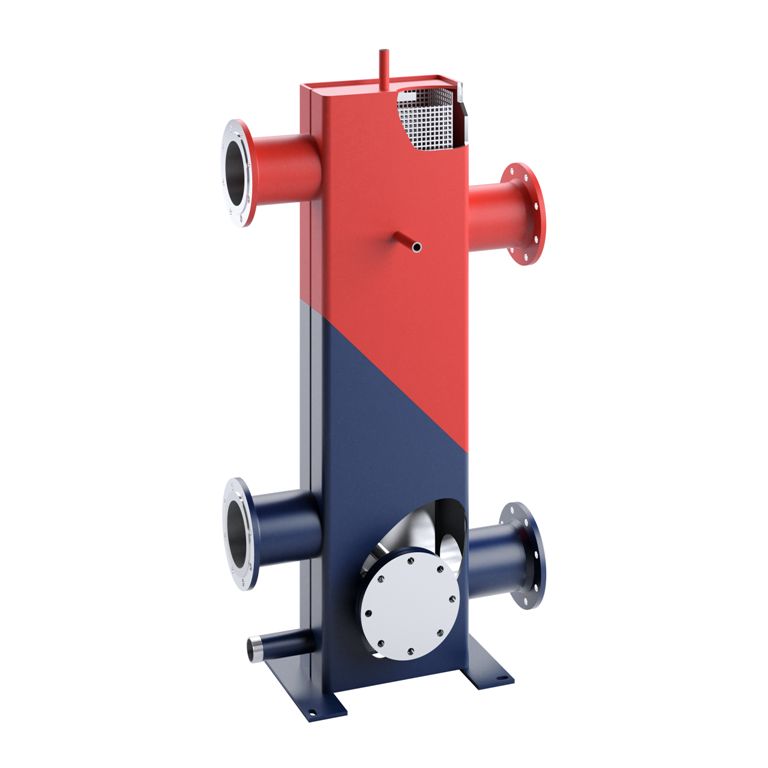

Vertical rectangular chamber made of hollow square profile S235. Connections for heat consumers and heat generators made of ANSI 150 lbs. The HydroMaxx is pressure-tested and primed at the factory.
Pedestal with boreholes for attachment to the floor.
- Integrated air und gas purger through stainless steel basket
- Integrated sediment and magnetite purging through magnetic filters
- Drain connection
- Hydronic decoupling
- Optimum water distribution
Accessories
Thermal insulation
Insulation in compliance with EnEV 2014 consisting of 2 half shells with cutouts for all nozzles
- 65 mm PUR foam in coarse grain aluminium casing
- 100 mm mineral wool in galvanized sheet steel casing
Technical data
| Heating water throughput rate | Chamber size | Connection |
Water quantity |
Total height | ||||
|---|---|---|---|---|---|---|---|---|
| [m³/h] | [gpm] | [Width / Height] | [DN] | [in inch] | [litres] | [gal] | [mm] | [in inch] |
| 4 | 17.5 | 80/80 | 40 | 1 1/2" | ||||
| 8 | 35 | 120/80 | 50 | 2" | ||||
| 10 |
44 | 160/80 | 65 |
2.5" | 15.5 | 4.1 | 1,440 | 56.7 |
| 18 | 80 | 200/120 | 80 | 3" | 30.8 | 8.1 | 1,450 | 57.1 |
| 27 | 118 | 250/150 | 100 | 4" | 55.3 | 14.6 | 1,470 | 57.9 |
| 43 | 189 | 300/200 | 125 | 5" | 79.1 | 20.9 | 1,480 | 58.3 |
| 57 | 251 | 400/200 | 150 | 6" | 107.6 | 28.4 | 1,495 | 58.9 |
| 85 | 374 | 450/250 | 200 | 8" | 152.0 | 40.2 | 1,520 | 59.8 |
| 110 | 484 | 500/300 | 200 | 8" | 246.1 | 65.0 | 1,820 | 71.7 |
| 170 | 749 | 600/400 | 250 | 10" | 395.2 | 104.4 | 1,845 | 72.6 |
| 235 | 1,034 | 650/450 | 300 | 12" | 496.6 | 210.4 | 1,945 | 76.6 |
| 300 | 1,320 | 700/500 | 350 | 14" | 719.0 | 189.9 | 2,290 | 90.2 |
