Hydronic Unit Type 80/60
with NPT connections
|Heating water throughput rate:||3.0 m³/h / 13.2 gpm|
|Output at ∆t 20K:||70 kW / 238.9 Btu|
|Pipe distance (OC)||125 mm / 4 11/16"|
|Operating pressure||max. 4 bar / max. 58 psi|
|Operating temperature:||max. 110°C / max. 230°F|
Hydronic junction with directly welded sinus manifold made of square profiles 80/60, 37-2 steel with welded endpieces. Hydronic junction consisting of a vertical, rectangular chamber with two lateral 1 ¼” NPT-threaded pipe nipples for the connection of the heat source as well as ½” couplings for air purging, sensor and draining. 1” NPT for connecting the heating circuits. Sinus manifold as combined flow and return manifold with adjacent chambers divided by a sinusoidal parting wall. Connection of junction and manifold by directly welded flow pipe; connection of return pipe by square profile running vertically parallel to the junction. Additional ½” coupling in the lower secondary flow pipe. The Sinus Hydronic Unit was pressure tested and primed in our factory.
- Connection, heating circuits: 1“ NPT
- Connection, boiler circuits: 1 1/4“ NPT
Thermal insulation, included in the set
|For chamber size||EPP foam (black)|
|[mm]||[Insulation thickness in mm]|
In compliance with EnEV 2014 consisting of half shells with end pieces and cutouts for all nozzles.
Wall bracket, included in the set
Soundproof and zinc-plated, consisting of wall panel for screw fastening and bracket, outreach up to manifold centre: 160 mm
(2 wall brackets are included in each set)

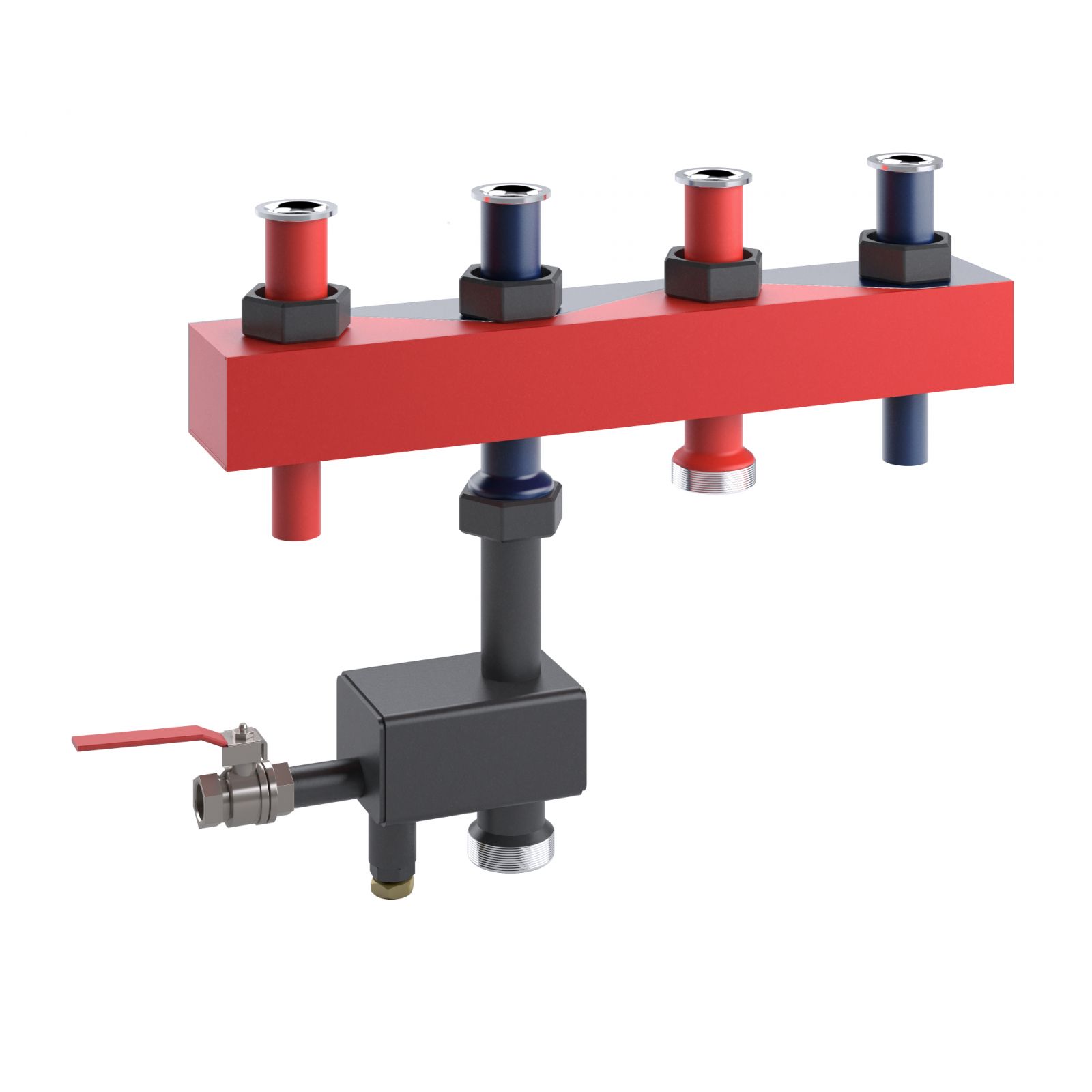

Maintenance box - Magnetite separation module
Enables desludging with pressurized system. Consisting of section tube 80x60, material S235, connection: 2x G 1 ½“. Equipped with desludging nozzle and ball valve ½“, and magnetic rod screwed into the thermwell. For attachment to the boiler return line beneath the manifold.
Set components: EPP insulation in compliance with EnEV, ball valve, magnetite filter cartridge
Made of galvanized sheet steel with transparent cover for three-line label for screw fixing to the thermal insulation. Size: 100 x 50 mm, colours: red for flow line / blue for return line
|Number of heating circuits||Heating water flow rate||Length||
|[HC]||[m³/h]||[gpm]||[mm]||[in inch]||[mm]||[in inch]|
