HydroFixx up to 53.8 m³/h / 236.9 gpm

1,250 kW / 4,265.2 MBH at ΔT 20 K

The manifold with integrated hydronic junction
Chamber size: 280/320
Heating water flow rate: 53.8 m³/h / 236.9 gpm
Output at ∆T 20 K: 1,250 kW / 4,265.2 MBH
Largest connection: DN 125 / 5"
Boiler connection: up to DN 150 / 6"
Pipe distance (OC): 300 mm, 350 mm, variable /
11.8", 13.8", variable
Product description

Combined flow and return manifold with chambers arranged adjacent to each other, separated by sinusoidal partition wall, with horizontally welded-on hydronix junction located directly below.
Consisting of square profiles S235. The HydroFixx is pressure-tested and primed at the factory.

  • The supply from/to the heating boiler is possible both from the top onto the compact manifold and from the bottom to the hydronic junction.
  • Heating circuit connections as threaded and / or flanged connectors PN 6 / PN 16 and aligned to the height of the shut-off valves.
  • With downward-running sludge trap with 1" desludging sleeve.



Accessories

Stand bracket

For chamber size
Bottom plateHead plateAdjustable in height
[mm] [mm] [mm] [mm]
120/120 to 200/200
150 x 150 120 x 120 from 270 to 340
280/320 to 500/550 200 x 200
150 x 180
from 270 to 340

Soundproof and zinc-plated, consisting of bottom plate with stand pipe and head plate
with guide pipe incl. connecting screws, adjustable in height.



Wall bracket

For chamber size
Head plate

Outreach
up to manifold centre

[mm] [mm] [mm]
120/120 to 200/200
120 x 120 300
280/320 to 500/550 150 x 180
500

Soundproof and zinc-plated, consisting of wall panel for screw fastening,
bracket and head plate.

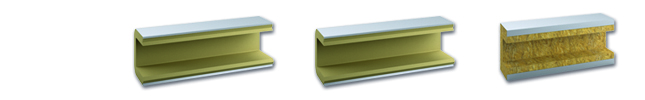

Thermal insulation

For chamber size
PUR foam in coarse grain aluminium casingPUR foam in galvanized sheet steel casingMineral wool in galvanized sheet steel casing
[mm] [Insulation thickness in mm] [Insulation thickness in mm] [Insulation thickness in mm]
120/120 to 200/200
60 - 100
280/320 to 500/550 - 60 100

In compliance with EnEV 2014 consisting of half shells with end pieces and cutouts for all nozzles



Magnetite separation module - Flange

Attention: All magnetite separation modules in flange-type design are not suitable for retrofitting.

For separation of ferromagnetic substances.
Consisting of an additional flanged connector DN 125 PN 6, equipped with sealing, screws, nuts, and blind flange fitted with magnetite filter bars, depending on the size of the selected HydroFixx.

Draining gutter

Made of galvanized sheet steel, size: 100/125/100 mm with 2" drain sieve.
Fastening devices: Stand bracket, galvanized (height adaptable by customer), wall bracket, galvanized
(max. outreach 200 mm)


Identification plate

Made of galvanized sheet steel with transparent cover for three-line label for screw fixing to the thermal insulation. Size: 100 x 50 mm, colours: red for flow line / blue for return line



Technical data
Heating water flow rate
Output at
ΔT 20 K
Manifold chamber
Water quantity ManifoldWater quantity junction

Heat transfer at 70°/50°C

Return flow boost

Wall thickness

[m³/h] [gpm] [kW] [MBH] [Width / Height] [l/rm] [gal/rm] [l/rm] [gal/rm] [kW] [MBH] [%] [K] [mm] [in inch]
53.8 236.9 1,250 4,265.2 280/320 45.0 11.9 35.9 9.5 7.8 26.6 0.6 0.1 6 0.2
